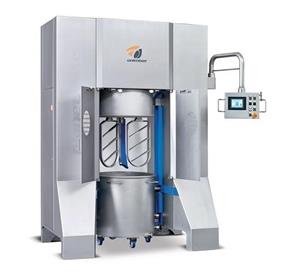

PLANETMIXER SERIES
PLANETMIXER
high speed pressurized mixers range is available in 6 different capacity: 120 lt, 200 lt, 300 lt, 400 lt, 600 lt and 800 lt. Each machine is composed of a
monolithic frame and it is the only pressurized mixer on the market with
main integrated motors inside the structure to guarantee durability, compactness and more cleanliness of the surfaces.
GORRERI PLANETMIXER, thanks to steam baking or cooling systems and to
15 different tools easily interchangeable, is able to realize every type of dough, raw, baked, liquid, viscous or prepared with special flours or GLUTEN FREE.
Perfect for whipping creams and all other types or creams, PLANETMIXER is also ideal to
cook directly inside doughs, batters and creams.
Pressurized mixers of PLANETMIXER series are equipped with
automatic and manual ingredients loading system.
Tools and motor gear work together to guarantee a
complete scraping of the bowl avoiding product collection on the bottom and guarantee perfectly well amalgamated doughs.
All GORRERI pressurized Planetary Mixers can be equipped with automatic product unloading systems by lobe pumps, installed on the machine and equipped with integrated
CIP (Clean In Place) system.
PLANETMIXER IN DEPTH:
Click on the plus buttons to discover the machine details.
MONOLITHIC STRUCTURE
One piece stainless steel structure made of thick sheets, folded and assembled together in order to obtain a self-supporting frame without bolted parts.
LOW NOISE
Sound absorbing material to make the machine even quieter
GREASING SYSTEM
Single entrance point for bearing greasing maintenance
MIXING HEAD
Mixing head made entirely of stainless steel and designed to work any type of dough and to be washed and sanitized in a simple and easy way
NO DUST
Upper part of the machine completely closed and divided into two parts to facilitate disassembly
CONTROL PANEL
Control panel with Touch-Screen PLC on a movable swinging arm made of stainless steel AISI 304
UTILITIES INPUTS
Utilities inputs from above the machine to have all the perimeter surfaces easily cleaned and without deposit points
HEAD CLEANING
Inside of the fixed bell studied to be automatically washed using hydrodynamic heads to avoid the stagnation of powders or water after washing
TECHNICAL FEATURES:
